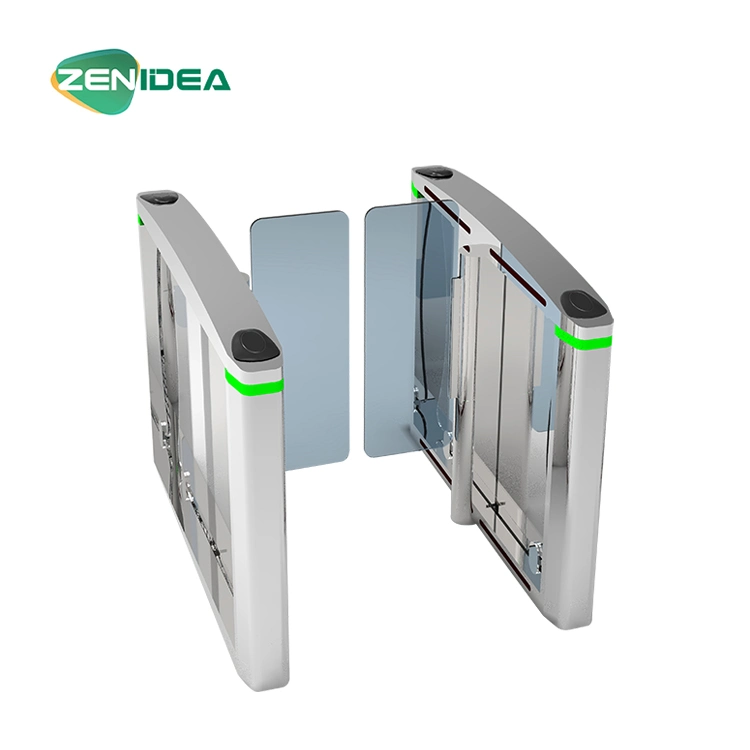

High level automatic bldc motor fast speed lane turnstile RFID/face recognition speed gate for hotel/business hall/commercial building
Speed gate is one of the important parts of modern entrance and exit control. The door wing is driven by the control system to automatically open and close. The operating mode can be selected through programming settings: As long as the entry has been verified, the door wing opens automatically. Closed after delay, the delay time is adjustable. The characteristic is that the running direction of the door wings is forward and backward. The operation process is within the sight of the human body, making it safer. The style of the swing door is changeable. Generally used in banks, corporate buildings, high-end office buildings, etc.
The swinging door wing is designed to be in front of pedestrians when the door wing is closed due to unauthorized entry. Will not cause harm to the human body due to pedestrians avoiding in time. The door wing is driven by a servo motor. The driving process is gentle and the rotating torque is constant and less than 120NM. When the door wing is closed due to unauthorized entry, it can ensure that the impact force will not cause harm to the human body. It is safer and more reliable than other operating methods. In an emergency, when the flow of people is congested, under the strong impact of the crowd, the door wings can be pushed forward to safely evacuate the flow of people without causing accidental casualties.
·Product advantages
1. No noise.
2. Years of experience in drive research and development;
3. The frame basically adopts the anti-cutting handbag edge design;
4. Imported electronic components are selected for the infrared sensor;
5. The movement drive adopts high temperature quenching to treat the gear drive, with high strength and not easy to wear;
6. Unique drawing pattern of the frame;
7. The middle acrylic partition can be customized with light effect pattern;
Shenzhen Zenidea Intelligent Technology Co., Ltd, a high-tech enterprise with 13 years experience specializing in the production of turnstiles and smart parking system. It is an enterprise integrating production, research and development, and sales. Obtained 30+ patent certificates. In the product production process, the product needs to go through 320 production processes, 12 quality inspection processes, and 72-hour aging process. In terms of software, we continue to optimize and upgrade standardized products and special customization requirements based on market application requirements and customer experience. We always insist on continuously innovating technology, and strive to create a global security industry boutique, to provide customers with better products.
Our production range includes tripod turnstiles, swing barrier gates, speed gates ,full height turnstiles, parking boom barrier and revolving doors which are widely used in subways, office building and other public area
> 7000m³ manufacturing center located in Shenzhen,China
> 9 R&D centers across China to provide timely and effective technical support
> 13 years of R & D and production experience
> 30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
> Top 10 Security Brands in China
> Appraised as a high-tech enterprise six consecutive years
> 20+ footprint,products sold to 20+ countries
FAQ
1.How about your company's actual strength?
7000m3 manufacturing center located in Shenzhen,China
9 R&D centers across China to provide timely and effective technical support
13 years of R & D and production experience
30+ Patents and various other related certificates (CE,RoHS,ISO9001,CNAS,IAF)
Top 10 Security Brands in China
2.How do you do after-sale service?
Free lifetime technical support(video / picture / remote assistance)
24/7 technical online service
Free replacement of hardware damaged during the warranty period (except for human factors).
3.How about your package?
Seaworthy wooden case + Foam.
Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
4.How about the lead time?
Stock products: 5-7 days
Out-of-stock products: According to the production schedule,12-20 days.
| Dimension | 1350*140*1005mm |
| Pass width | 600-700mm |
| Infrared sensor | 6 pairs |
| Communication interface | Dry contact / RS232 |
| Passing rate | 35-45persons/min |
| Case Material | SS304 stainless steel,Tempered glass,acrylic |
| Arm material | Acrylic |
| Material thickness | 2mm |
| Passage direction | Single directional / Bi-directional |
| Opening method | ID / IC card verification,infrared induction |
| MCBF | 9million times |
| Power | 90-100w |
| Working humidity | ≤90% |
| Working temperature | -20ºC~75ºC |
| Working environment | Indoor |
| Power input | AC220±10% 50Hz |
| Mechanism | Brushless motor(Optional Servo motor ) |
| Protective function | Encoder limit, clutch anti-collision, infrared anti-pinch |
