Sunhans 2000mW 5.8Hz WiFi Wireless Extender 33dBm Signal Booster Amplifier with 6dBi Antenna IEEE 802.11a/n SupportedFeatures:  5.8GHz, Max. 2000mW output power;Aluminum-alloy case by CNC, anti-interference;Cost effective solution for weak signal zones, reduce drop/off calls;Full kit, easy to instal

Featured Products

Sunhans 2000mW 5.8Hz WiFi Wireless Extender 33dBm Signal Booster Amplifier with 6dBi Antenna IEEE 802.11a/n Supported


Features:
5.8GHz, Max. 2000mW output power;
Aluminum-alloy case by CNC, anti-interference;
Cost effective solution for weak signal zones, reduce drop/off calls;
Full kit, easy to install; light weight, small size, protable;
Designed for house, office, UAV, IP cameras, RC equipment....


Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster


Cell phone Amplifier Description: 2000mW 5.8GHz 33dBm WiFi Signal Booster

SKU0305SH100025
ModelSH58Gi2000P
Operating Range5000 ~ 5800 MHz
Channel width20Mhz & 40Mhz & 80Mhz
Supported standardsIEEE 802.11a/n
Operating ModeBi-directional, half-duplex, time division duplex
Connector typeTo radio SMA female (hole inside).
To antenna RP-SMA female (pin inside)
Input power0~20 dBm
Transmit gain15-18dB
Output Power2W (33dBm)
Receiver Gain11~14 dB
Noise Figure≤3.5 dB typical
Frequency Response±1dB over operating range
Power supply12V/2A DC, 100~240V
Operating Temperature-20°C to + 70°C
Operating HumidityUp to 75% relative humidity
MaterialCast Aluminum
LED lightPower status LED and activity status LED
Booster Size8.4 x 5.4 x 2cm
Booster Weight110g

Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster


Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster


Package contents:
1 x SH58Gi2000 WiFi booster
1 x RG316 cable with SMA connectors (20cm)

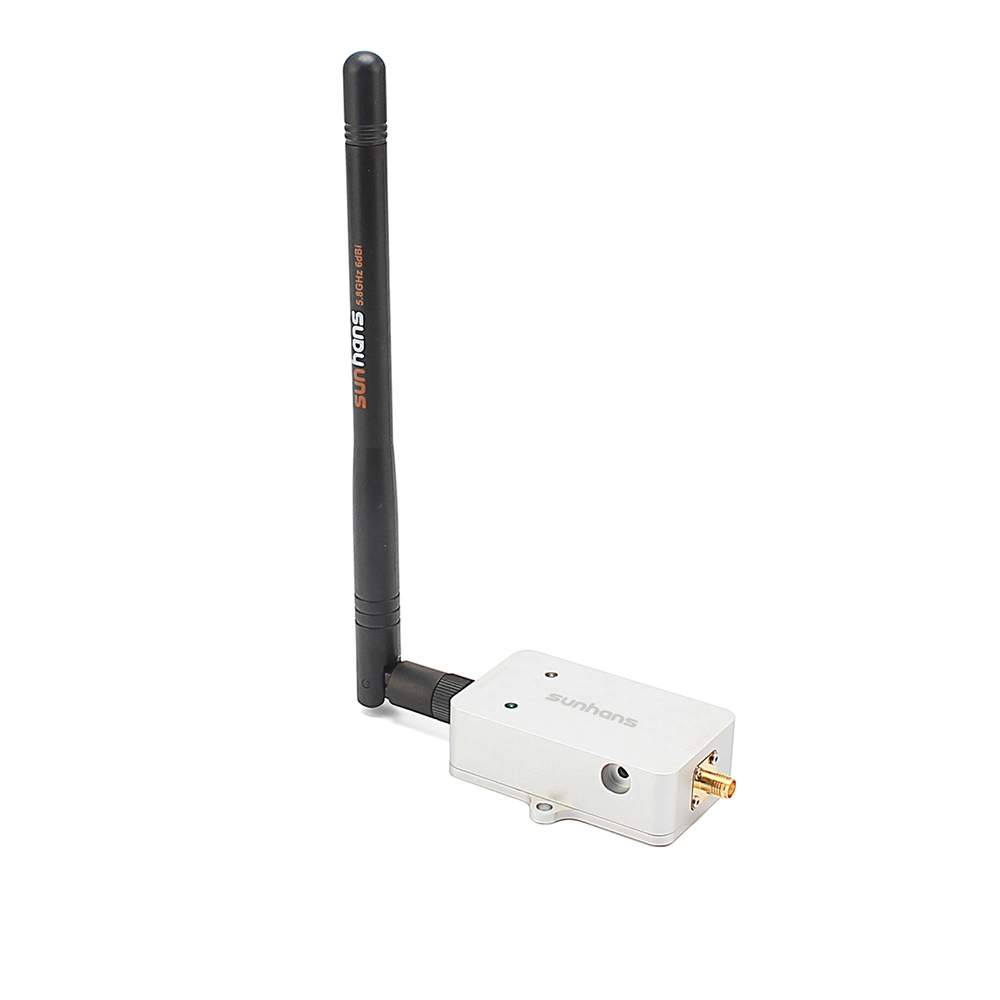

1 x 6dBi omni antenna
1 x power supply
1 x user manual

Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster

All specifications of PA can be customized based on customer requirement.

Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster


Product Description:
   The 5.8GHz WLAN signal booster is designed for IEEE 802.11b/g/n/a/ac Wireless LAN Applications.The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi device and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate.

Application:
   5.8GHz 2W 33dBm is Popular for UAV,Routers,IP cameras, R/C helicopters, planes and cars, Bluetooth, Walkie talkies,Robotics for beach and flood rescue;
  For house, office,Hotels,supermarkets, Hospitals,parking spaces, office....
  Solution: Hot Spot solutions,Access points,Smart home systems


Sunhans 5.0-5.8GHz 2000MW 33dBm Support IEEE 802.11A/N Bi-Directional WiFi Signal Booster



Features:
1. Easy Installation
2. Plug and play, no software setup.
3. 3.5dB ultra-low noise
4. Aluminum-alloy case by CNC, it can expand wifi signal range 10-20 times.
5. Can enlarge WiFi signal coverage range, as long as the frequency of the product can be applied
6. Widely used in security, drones, urban hotspot coverage, railway hotspot coverage, etc.

1. What is the WiFi signal booster?
  The working mode of the WiFi signal booster needs to be connected to the signal source (customer device which cause wifi signal ) through one end of the cable, and the other end is connected to the antenna, and the WiFi signal range is expanded through the antenna.

2. Can I install the Sunhans booster myself?
 Of course, our products are easy to install and plug and play, and the product package contains instructions for each product.
